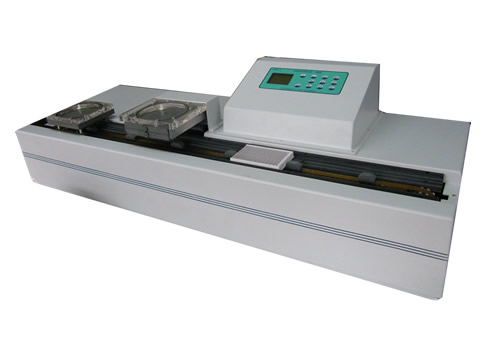

Microplate washer and sealer and coater WSC500

来源：seebio.cn作者：西宝生物人气：-发表时间：2012-03-26 13:56:50【大中小】

Introduction:

1、four functions:wash and seal ,single wash,single coating and single seal.
2、Standard paltes:96 wells;
3、Wash and seal continuously to shorten the intermediate link and assure quanlity;
4、Exhaust automaticly;
5、High precision of adding liquid
6、Change pipeline easily to avoiding cross contamination of changing different reagents
7、Fast rate of adding liquid to assure the quanlity;
8、Double detection to eliminate leaking adding and repeating adding.
9、Made of advance anticorrosive material to prevent corroding effectively
10、Residual quantity of wash solution is less than 1uL and no beating plates;
11、Wash heads designed uniquely to make the heads open easily;
12、Work programme:flexible and wash with self-made program
13、Amount od adding liquid:adjustable arbitrarily according to the request;
14、Location od elisa plates: adjustable front and back;
15、It can make sounds to remind of wash finished and stop automaticly;
16、Overall dimensions:longth 1965mm,width 450mm,height 370mm.

Specification of wash and seal:
1、Wash times:0-99 adjustable;
2、Residual quantity of wash solution:<1UI/well
3、Quantity of seal solution:10-400uladjustable;
4、Precision of filler solution:±2%;
5、Error between plates:±2%;
6、Rate of wash and seal: the fastest rate of wash once no soak time is 500pieces/h.
Specification of only wash:
1、Wash times:0-99 adjustable;
2、Soak time:0-99 seconds adjustable;
3、Residual quantity of wash solution:<1UI/well
4、The fastest rate of wash once no soak time is 500pieces/h.
Specification of coating and seal:
1、Range of adding liquid:10-400ul;
2、Precision of filler solution:±2%;
3、Error between plates:±2%;
4、Rate of coating:3000 pieces/h
5、Elisa plate coated has the numeration function and the range is 0-65535 pieces;
6、Volume of coating bottle:20000ul
7、Internal diameter of silicone tube:6.1MM
8、Noise:<40db.
