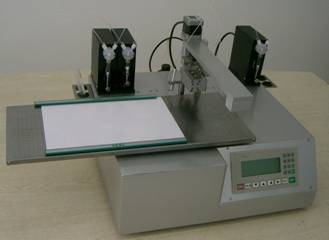

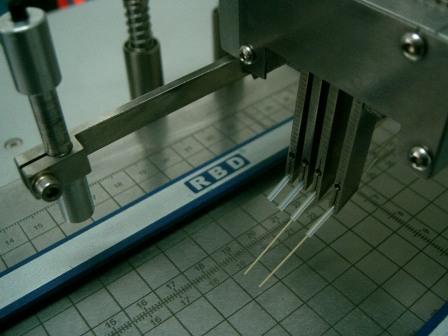

Lateral Flow dispenser BHS1400 is ideal for colloid spraying/reagents gliding on sheet membrane by circular movement. It has wider platform at 225mm and offers high efficiency by multi-sprayer. Three sprayers are installed as standard package. The motorized Z axis is much helpful to get different width of sprayed line. 44 lines(5mm distance) colloid could be sprayed by one circle in a short time. Gliding of Multi-lines is optional.

Technical Specification:
X axis travel: 320mm
X Slide speed: 50—250mm/S
Y axis travel: 208mm
Y slide speed: 100mm/S
Z axis travel: 35mm
Z axis speed: 50mm/S
Module size:50 x 52 x 42cm
Module weight: 35 kg
